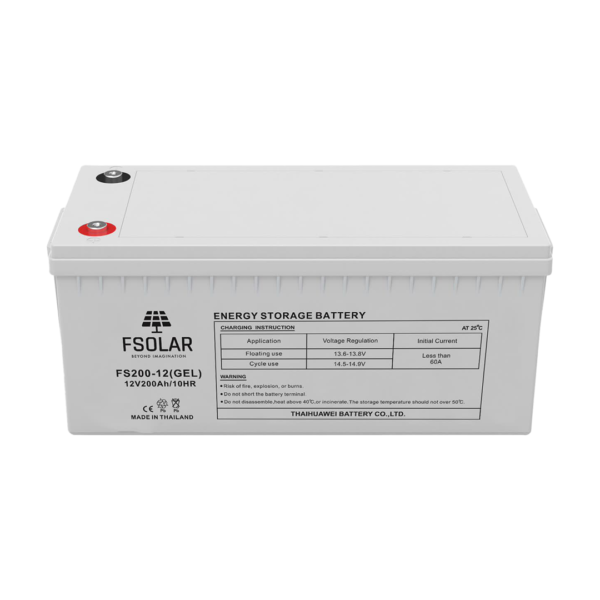

Fsolar 200AH 12V Deep Cycle GEL Battery Thailand FS200-12(GEL)

Designed for long-lasting and reliable energy storage, the FSOLAR FS200-12(GEL) is a 12V 200Ah gel battery that offers excellent deep discharge recovery, low self-discharge, and high performance across diverse temperature ranges. Ideal for solar systems, backup power, and other off-grid applications.

Key Specifications:

• Model: FS200-12(GEL)

• Voltage: 12V

• Capacity (25°C):

  • 20-Hour Rate (10A): 200Ah

  • 3-Hour Rate (50A): 200Ah

  • 1-Hour Rate (110A): 200Ah

• Internal Resistance: Full Charged Battery @ 25°C

• Weight (±3%): 57.7kg

Performance by Temperature:

• 40°C / 25°C / 0°C / -15°C: Maintains 200Ah capacity

• Residual Capacity at 25°C:

  • After 3 Months Storage: 200Ah

  • After 6 Months Storage: 200Ah

  • After 12 Months Storage: 200Ah

Charging Details:

• Cycle Use (25°C):

  • Voltage: 14.5V – 14.9V

  • Initial Charging Current: < 60A

• Float Charging (25°C):

  • Voltage: 13.6V – 13.8V

Construction & Design:

• Container Color Options: Black C / Grey 3C

• Terminal Type: T3

• Dimensions (mm):

  • Length: 522 ±2

  • Width: 239 ±2

  • Height: 222 ±2
